Hello everyone! I hope you all will be absolutely fine and having fun. Today, I will give you a detailed discussion on myRIO Ultrasonic Sensor Interfacing. In this tutorial you will learn about the NI myRIO ultrasonic sensor interfacing. We will go into the details of ultrasonic sensor and then will move forward towards its interfacing with myRIO. I have already shared many articles on ultrasonic sensor and will share their link in this article as well. Ultrasonic sensor is also known as SONAR (Sound Navigation and Ranging). As it is clear from its name, it transmits sound waves and these waves are received back to it after getting reflected from any object. It measures the total time elapsed during the entire transmission as well as during the reception of the reflected waves. The sum of both the times is usually known as RTT (Round Trip Time). This RTT is equal to the distance between any external object and the sensor itself. Optical sensors have a transmitter for the transmission of optical waves and a receiver at the receiving end. But in comparison to optical sensor, SONAR sensor has a single structure for both transmission and receiving purposes. SONAR sensor has four pins to perform different actions. It is the most common device and is specially used for obstacle avoidance purposes in robotics. It can also be used to estimate the distance of different objects. It is an inexpensive device and is easily available in the market these days. There is another sensor similar to the ultrasonic sensor available in the market named as PNG sensor. But it has three pins, that is the only difference between PNG and ultra sonic sensor. Both can be used for distance measurement and obstacle avoidance purposes. The further detail about ultrasonic sensor and myRIO ultrasonic sensor interfacing will be provided later in this tutorial.
myRIO Ultrasonic Sensor Interfacing

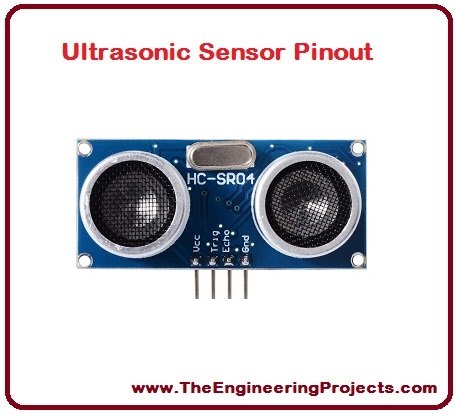

Ultrasonic Sensor is an electronic device/sensor/module used for the estimate the distance of different objects. It works on a very simple principle. It transmits ultrasonic waves and these waves get reflected from the objects in surroundings. It receives the reflected waves and measures the time elapsed during the whole process which is equal to the distance between the specific object and the SONAR sensor. It has a wide range of application including robot sensing, liquid level control, full detection, stacking height control, people detection for counting, presence detection, vehicle detection, thread/wire break detection etc. Ultrasonic sensor is shown in the figure given below.
Note:
I have shred many tutorials on ultrasonic sensor introduction, about its libraries and its interfacing with different microcontroller. Now, I am going to share their links again, you must go through all these articles for having better understanding about SONAR sensor.
1. Ultrasonic Sensor Pins
- It has four pins having different individual tasks to perform.

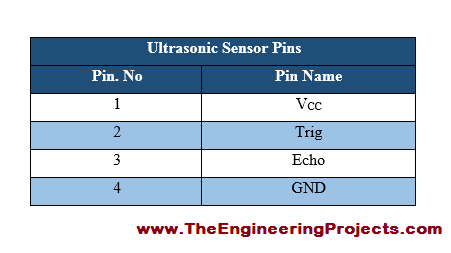

- Ultrasonic sensor pins are listed in the table shown in the figure below.

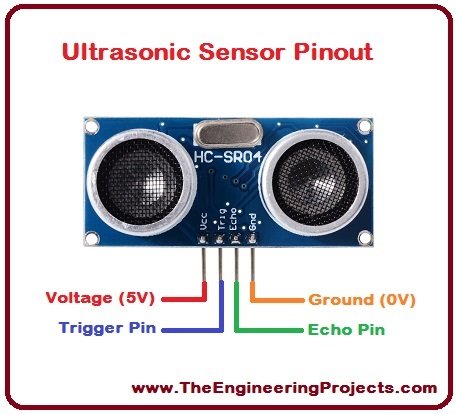

- Ultrasonic sensor along with its pin names is given in the figure shown below.
2. Ultrasonic Sensor Pins Description
- As we know each of the has assigned with the different task, so we should about each pin.

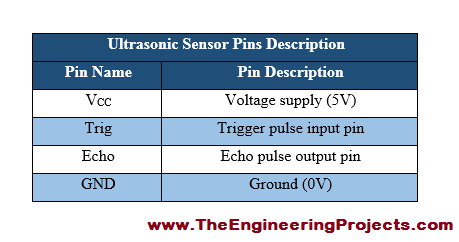

- Ultrasonic sensor pins description is provided in the table given in the figure shown below.s
3. Ultrasonic Sensor Dimensions
- Ultrasonic sensor is divided into different segments.

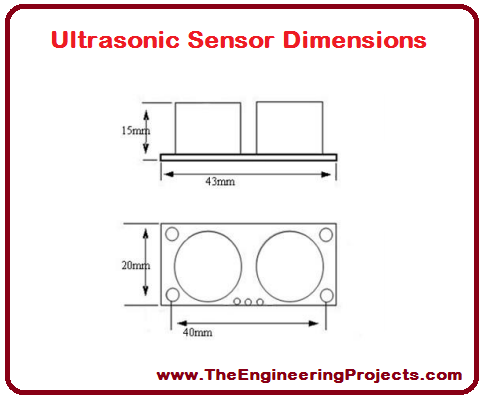

- Dimensions of each segment are shown in the figure given below.
4. Ultrasonic Sensor Working Principle
- It works on a very simple principle based on sound waves.
- It transmits sound waves in the surroundings.
- These sounds waves collide with the external objects.
- After colliding with the external objects they reflect back to ultrasonic sensor.
- It measures the total time elapsed during the transmission and receiving the reflected wave.
- The total time is known as a Round Trip Time (RTT) and is equal to the distance between the object and the sensor.
- That was the entire working principle of SONAR sensor.

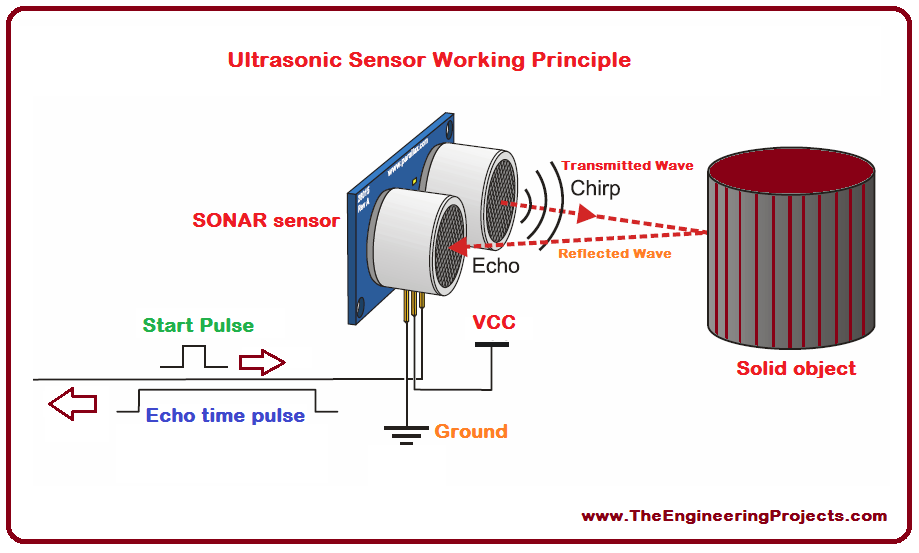

- I have provided the visual description of its working principle as given in the figure shown below.
5. Ultrasonic Sensor Features
- The features of any electronic device that can make a device more popular among its competitors.

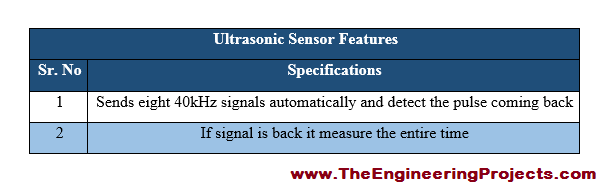

- Ultrasonic sensor features are listed in the table shown in the figure given below.
6. Ultrasonic Sensor Ratings
- Ratings show the voltage, power and current requirements of any electronic device.

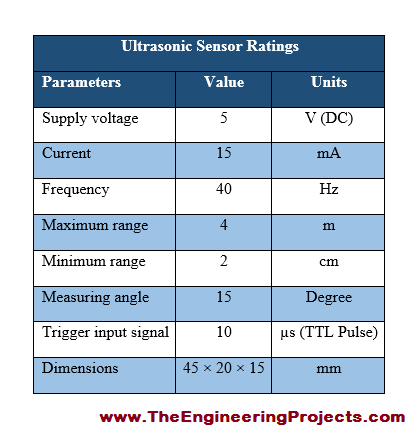

- Ultrasonic sensor ratings are listed in the table shown in the figure below.
7. Ultrasonic Sensor Applications
- Electronic devices such as small sensors are usually known on the basis of their applications.
- Ultrasonic sensor has a wide range of applications in real life.

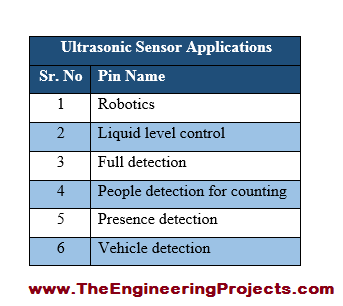

- Some of them are listed in the table given in the figure shown below.
8. myRIO Ultrasonic Sensor Interfacing Wiring Diagram
- I have made a completely labelled wiring diagram for myRIO ultrasonic sensor interfacing.
- Complete wiring diagram is given in the figure shown below.
9. LabVIEW Final Front Panel Design
- As a result I have provided a complete front panel window for myRIO ultrasonic sensor interfacing.
- The LabVIEW front panel window is given in the figure shown below.
- Our team has designed this LabVIEW simulation with a lot of several testing stages.
- After a lot of testing we got the accurate results, so we have imposed a very low cost on it.
- But, the imposed cost is as low, that even a student can easily buy it.
- You can buy the LabVIEW simulation for myRIO ultrasonic sensor interfacing here by clicking on the button given below.
[dt_button link=”” target_blank=”false” button_alignment=”default” animation=”fadeIn” size=”medium” style=”default” bg_color_style=”default” bg_hover_color_style=”default” text_color_style=”default” text_hover_color_style=”default” icon=”fa fa-chevron-circle-right” icon_align=”left”]Buy LabVIEW Simulation[/dt_button]
In the tutorial myRIO Ultrasonic Sensor Interfacing, I have provided an environment where you can easily visualize and learn about the basics of ultrasonic sensor and its interfacing with NI myRIO. I have also shared the links of my previously shred articles for the interfacing of SONAR sensor with other micro-controllers. I hope you have enjoyed this tutorial and will appreciate my efforts. I will also share different articles on myRIO interfacing with the other sensors as well, in my upcoming tutorials. Till my next tutorial take care and bye bye
